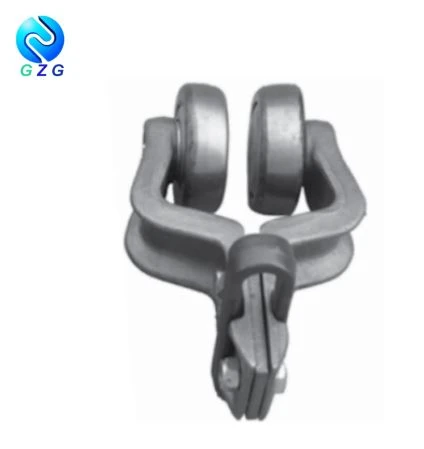

Jatuhkan-Troli palsu dan Troli Terbalikjuga merupakan lampiran rantai tanpa sungai untuk penghantar. Kami menyediakan kedua-dua troli dan troli revers. Jenis utamanya ialah X348, X458, X678, XT100, XT160, S348, 678. Bahagian atas troli bergolek dalam panduan, bahagian bawahnya menyambung rantai penghantar yang boleh menyampaikan tenaga kinetik. GZG drop-troli palsu layak untuk menunjukkan kualiti seperti pemuatan tinggi, kelancaran meluncur lancar, saiz standard.

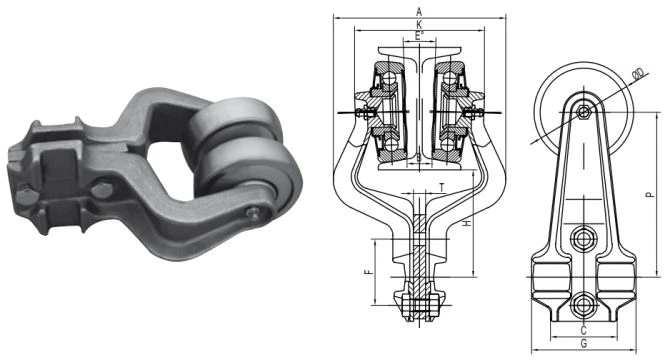

Drawing and dimensions of Jatuhkan-Troli palsu
 | |||||||||||
| rantai Tidak. | Dimensi | Berat badan | |||||||||
| P | H | A | K | E | F | B | T | C | D | ||
| mm | mm | mm | mm | ijazah | mm | mm | mm | mm | mm | Kg/Set | |
| X348-1 | 100.0 | 64.0 | 102.0 | 84.0 | 4 | 47.8 | 14.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X348-2 | 100.0 | 63.5 | 122.0 | 94.0 | 6 | 48.0 | 18.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X458-1 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| X458-2 | 128.5 | 82.5 | 131.0 | 109.0 | 4 | 54.0 | 20.0 | 10.0 | 54.0 | 80.0 | 3.00 |
| X458-3 | 150.0 | 103.0 | 138.0 | 106.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.20 |
| X678 | 170.0 | 102.0 | 171.0 | 145.0 | 4 | 70.0 | 24.0 | 12.7 | 85.0 | 120.0 | 7.40 |
| XT100 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| XT160 | 171.0 | 103.0 | 180.0 | 140.0 | 6 | 70.0 | 26.0 | 16.0 | 84.0 | 120 | 8.80 |
 | ||||||||||||
| rantai Tidak. | Dimensi | Berat badan | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | ijazah | mm | mm | mm | mm | mm | mm | Kg/Set | |
| S348 | 100.0 | 65.8 | 143.0 | 104.0 | 3 | 47.8 | 22.0 | 6.0 | 40 | / | 60 | 1.5 |
 | ||||||||||||
| rantai Tidak. | Dimensi | Berat badan | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | ijazah | mm | mm | mm | mm | mm | mm | Kg/Set | |
| 678 | 136.0 | 89.0 | 146.0 | 114.0 | 4 | 54.0 | 18.0 | 10.0 | 86.0 | 54 | 82.00 | 3.6 |

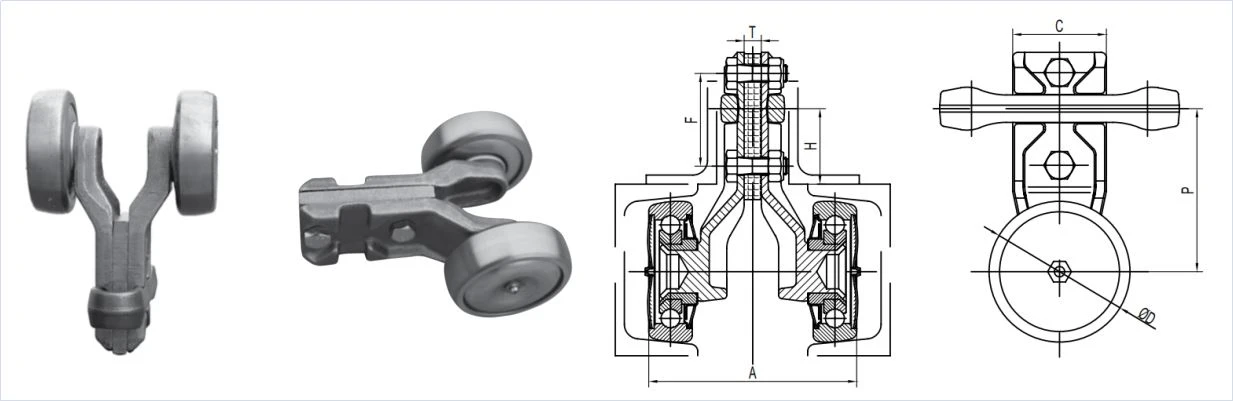

Drawing and dimensions of Jatuhkan-Troli Songsang palsu
 | ||||||||
| rantai Tidak. | Dimensi | Berat badan | ||||||
| P | H | A | F | T | C | D | ||
| mm | mm | mm | mm | mm | mm | mm | Kg/Set | |
| X348 | 86.0 | 48.0 | 93.0 | 55.0 | 6.0 | 40.0 | 60.0 | 1.3 |
| X458 | 95.0 | 44.0 | 120.0 | 54.0 | 10.0 | 54.5 | 82.0 | 2.5 |

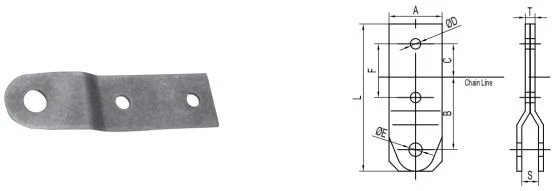

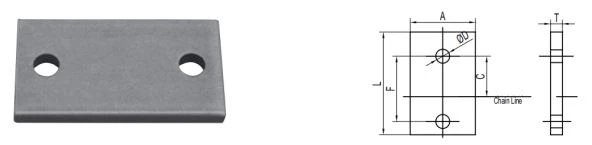

Lampiran untuk Trolley
 | ||||||||||
| rantai Tidak. | Dimensi | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 135.5 | 47.8 | 80.0 | 25.4 | 8.5 | 13.5 | 6.0 | 14.0 | / |
| X458 | 54.0 | 148.2 | 54.0 | 52.5 | 33.5 | 10.5 | 13.5 | 10.0 | 17.0 | / |
| X678 | 76.2 | 177.8 | 70.0 | 92.0 | 41.5 | 13.5 | 20.5 | 12.7 | 20.8 | / |
| XT160 | 80.0 | 248.0 | 70.0 | 107.0 | 43.5 | 13.0 | 20.0 | 16.0 | 32.0 | / |
 | ||||||||||
| rantai Tidak. | Dimensi | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 68.0 | 47.8 | / | 25.4 | 8.3 | / | 6.0 | / | / |
| X458 | 54.0 | 85.0 | 54.0 | / | 33.5 | 11.5 | / | 10.0 | / | / |
| X678 | 80.0 | 110.0 | 70.0 | / | 41.5 | 13.5 | / | 12.7 | / | / |
| XT160 | 80.0 | 110.0 | 70.0 | / | 43.5 | 13.0 | / | 16.0 | / | / |
 | ||||||||||
| rantai Tidak. | Dimensi | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 146.1 | 47.8 | 39.7 | 25.4 | 8.3 | 3.6 | 6.4 | / | 1/2-13UNC |
| X458 | 50.8 | 177.8 | 54.0 | 47.6 | 33.5 | 10.3 | 5.0 | 9.5 | / | 5/8-11UNC |
| X678 | 76.2 | 222.0 | 70.0 | 66.7 | 41.5 | 13.5 | 5.6 | 12.7 | / | 7/8-9UNC |
| XT160 | 78.0 | 225.0 | 70.0 | 67.0 | 43.5 | 13.0 | 5.0 | 16.0 | / | M24X3 |

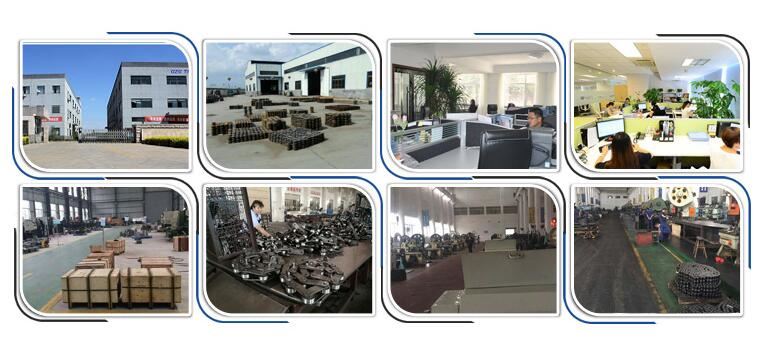

Paparan Kilang GZG
